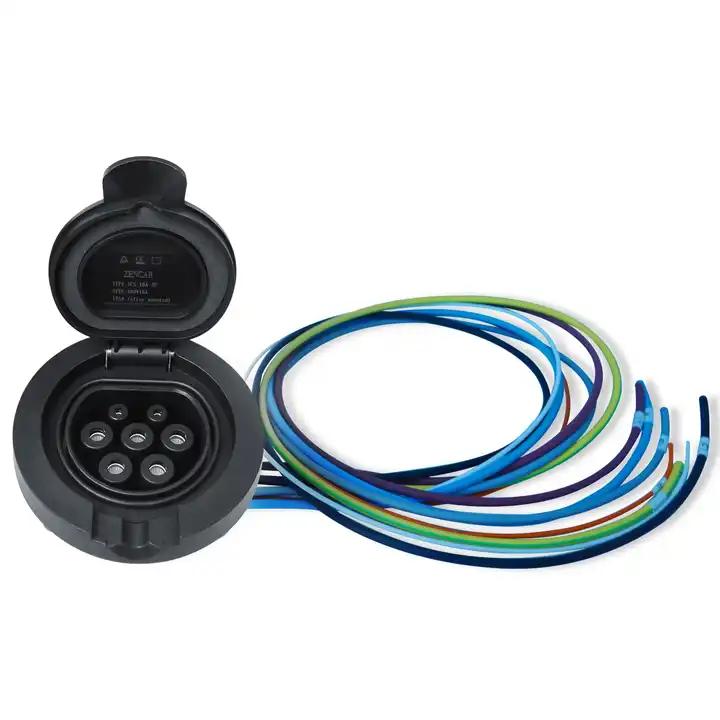

Type 2 Female EV Charging Accessories Socket Inlet IEC62196-2 CE TUV Approved

Name: Type 2 Female EV Charging Accessories Socket Inlet IEC621962 CE TUV Approved
Brand: Evoyage
Price: 1 USD

Buy cheap Type 2 Female EV Charging Accessories Socket Inlet IEC62196-2 CE TUV Approved product

Brand Name : Evoyage

Model Number : EV32AP

Certification : CE,TUV,CB

Place of Origin : Sichuan, China

MOQ : 2 pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week

Delivery Time : 7-15 working days

Packaging Details : packing: Standard export carton box

Product Name : EV Charge Socket Type 2 Female EV Socket EV Charging Accessories For Charger Station

Type : Outlet, Plug, Type2, IEC62196-2, Ev Charger

Application : Electric Vehicle Car Charging

Rated current : 16/32A

Rated voltage : AC 240-415V

Standard : IEC62196-2

Mechanical life : 10000 Times' Plug In/off

Function : EV Car Charger

Material : Thermoplastic

Warranty : 1 Year

Contact Now

Type 2 Female EV Socket with Electronic Lock EV Charging Station Wallbox EV Charger EV Inlet For EV Charging Pile

Type 2 EV Socket EV inlet with Electronic Lock is commonly Used for Electric Vehicle Charging Station connection.

The female type 2 EV charging socket is made of high-quality thermoplastic material with a UL94 V-0 flammability insulator.

It allows charging up to 32A 22kW 400V. The socket meets all the requirements of IEC 62196-2 and with CE/TUV certtificates.

Product name	Type 2 Female EV Socket with Electronic Lock EV Charging Station Wallbox EV Charger EV Inlet For EV Charging Pile
Type	Type 2/IEC62196-2
Operating Temperature	-30℃ to 50℃
IP Grade	IP54
Certificate	CE & TUV Approved

Type 2 Female EV Charging Accessories Socket Inlet IEC62196-2 CE TUV Approved

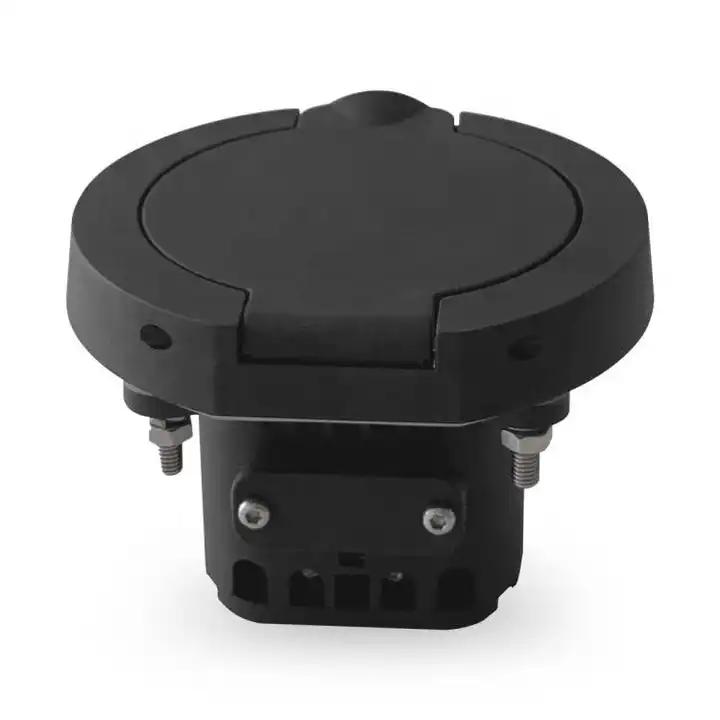

16A 32A Type 2 EV AC female socket for station side

Rated current: 16A/32A
Rated voltage: 250V AC, Single Phase or 415V AC, Three Phase for option
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 54 ( working condition)
Product description: This IEC62196 Type 2 AC EV Female Socket is used at the type 2 AC charging station, as a electric outlet for model 3 charging cable to charge the electric cars.

Model selection and the standard wiring

16A Single phase; 3 X 2.5mm² + 2 X 0.5mm²
16A Three phase: 5 X 2.5mm² + 2 X 0.5mm²
32A Single phase;3 X 6mm²+ 2 X 0.5mm²
32A Three phase;5 X 6mm²+ 2 X 0.5mm²

16A 32A Type 2 EV AC Charging male socket for EV side

Rated current: 16A/32A
Rated voltage: 250V AC, Single Phase or 415V AC, Three Phase for option
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 54 ( working condition)
Product description: This Type 2 AC Charging Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the Type 2 Electric Vehicle.

Model selection and the standard wiring

16A Single phase; 3 X 2.5mm² + 2 X 0.5mm²
16A Three phase: 5 X 2.5mm² + 2 X 0.5mm²
32A Single phase;3 X 6mm²+ 2 X 0.5mm²
32A Three phase;5 X 6mm²+ 2 X 0.5mm²

16A 32A Type 2 EV AC Charging Inlet Socket Vehicle Side

Rated current: 16A/32A Three Phase
Rated voltage: 250V AC, Single Phase or 415V AC, Three Phase for option
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 54 ( working condition)
Product description: This Type 2 AC Charging Inlet Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the Type 2 Electric Vehicle.

Model selection and the standard wiring

16A Single phase; 3 X 2.5mm² + 2 X 0.5mm²
16A Three phase: 5 X 2.5mm² + 2 X 0.5mm²
32A Single phase;3 X 6mm²+ 2 X 0.5mm²
32A Three phase;5 X 6mm²+ 2 X 0.5mm²

IEC Type 2 Connector

IEC 62196-2 connectors are used for charging electric vehicles, mainly in Europe. Because it was declared a standard by the EU. Based on the widely available red IEC 60309 three-phase plug with five pins. Depending on the maximum current there are different diameters (most commonly 16A and 32A), so a single size was chosen. Because the maximum possible power will be communicated to the car via two additional communication pins and a simple resistor code inside the cable. The onboard charger in the car must limit the current accordingly.

The connector is round with a flat top edge. The initial design specification comes with an output electrical power of 3-50 kW for charging battery electric vehicles using single-phase (230V) or three-phase (400V) alternating current (AC). In general, the typical maximum power is 32A 7.2 kW using single-phase AC and 22 kW using three-phase AC. The plug has an opening on the side so that both the car and the charger can automatically lock the plug. To prevent unnecessary charging interruptions or cable theft.

Top quality at the best price

Maximum efficiency

Get maximum charging performance with a superior quality cable (poor quality cables increase losses, lengthen charging times and consume more energy).

Long life

The high quality of the materials and the robustness of the connectors used ensure a long service life of the charging cable under all operating conditions.

Individually tested

Each charging cable is tested by e-Station before shipment to ensure the absence of any defects and thus avoid potential problems with the electric vehicle and/or charging station.

Indoor and outdoor use

The charging cable can be used in all weather conditions, indoors or outdoors, without affecting the functional and safety features.

Different lengths available
