Type 1 To Type 2 EV Charging Adapter SAE J1772 To IEC62196 32A 250V 8KW

Name: Type 1 To Type 2 EV Charging Adapter SAE J1772 To IEC62196 32A 250V 8KW
Brand: Evoyage
Price: 1 USD

Buy cheap Type 1 To Type 2 EV Charging Adapter SAE J1772 To IEC62196 32A 250V 8KW product

Brand Name : Evoyage

Model Number : EV2GB32A

Place of Origin : Sichuan, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash

Supply Ability : 10000 Piece/Pieces per Week

Delivery Time : 7-15 Working days

Packaging Details : 18.5X14.5X9 cm;1.000 kg

Product Name : Type 1 to Type 2 EV Charging Adapter SAE J1772 to IEC62196 32A 250V 8KW Adapter For Type 2 EV Charging Converter

Rated current : 32A

Rated voltage : 250V

Standard : IEC62196-2/Sae J1772

Mechanical life : 10000 Times' Plug In/off

Function : EV Car Charger

Operating temperature : -30℃ - +50℃

Warranty : 1 Year

Contact Now

Type 1 to Type 2 EV Charging Adapter SAE J1772 to IEC62196 32A 250V 8KW Adapter For Type 2 EV Charging Converter

Type 1 To Type 2 EV Charging Adapter SAE J1772 To IEC62196 32A 250V 8KW

【Universal】 The EV Charging Adapter is applicable to most models with Type 2 charging plug.
【High Performance】 EV charging connector has excellent protection performance, protection level reaches IP54 (working condition). The car charging adapter is made of thermoplastic material, and the flame retardant rating reaches UL94‑V‑0, safe to use.
【Characteristics】 The EV adapter can work under the conditions of ‑30°C to 50°C, and antiflaming, pressure resistance, wear resistance and so on.
【Convenient to Use】 Type 1 to Type 2 EV converter, rated current 16/32A AC, working voltage 250V, power 8 KW, saving workload and time, and bringing you great convenience.

Product Specifications

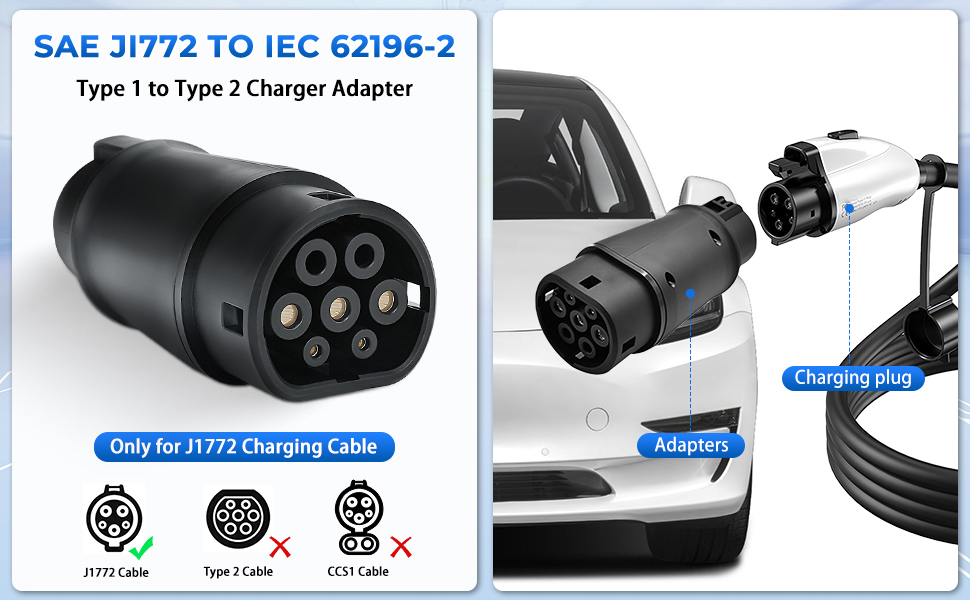

Manufacturing standard:	J1772 to IEC 62196-2
Color:	Black

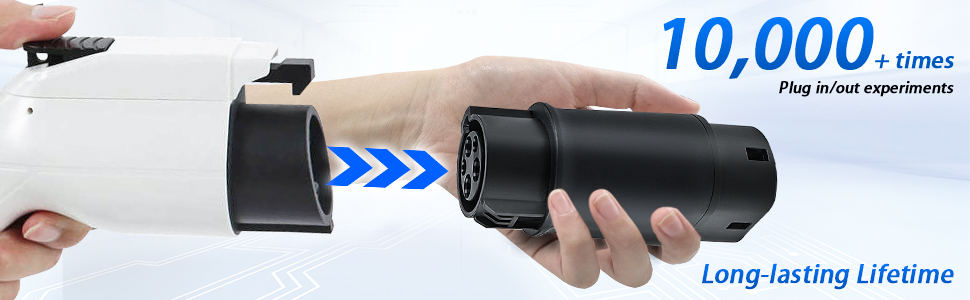

Plug in/pull out:	>10000times
Rated voltage:	250V
Power:	8KW AC
Current:	32A
Operating temperature:	-30℃~+50℃
Protection grade:	IP54(Protection from dirt, dust, oil, and other non-corrosive material. Complete protection from contact with enclosed equipment. Protection from water, up to water projected by a nozzle against enclosure from any direction.
Housing material:	Heat shrinkable plastics UL94V-0
Fire Rating:	UL94 V-0
Insulation resistance:	>10MΩ(DC500V)
Contact bush conductor:	Copper alloy, silver plating
Withstand voltage:	2000V AC/5S
Coupled insertion force:	45N< F < 80N

Connecting different charging posts, allows you to charge your tram easily without having to look for the corresponding connector everywhere.
Lightweight, you can take it with you and use it whenever you want.

Type 1 To Type 2 EV Charging Adapter SAE J1772 To IEC62196 32A 250V 8KW

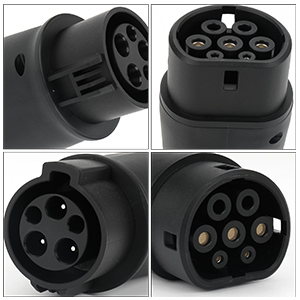

Easy To Carry Small and convenient.Keep it in you car for use at any time.	Details Made of high quality & strength ABS material with protective sleeve around the connector.	Use In Any Climate The adapter can work from -22°F to 122°F with IP54 waterproof suitable for outdoor charging.
